  • FW8S-Aluma

    SKU: FW8S-Aluma

    $1,195.00

Product Description

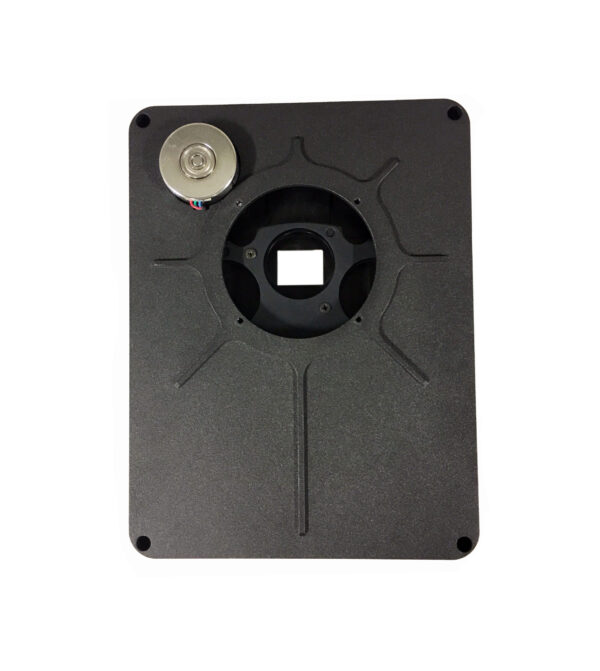

The SBIG FW8S-Aluma is the standard (non-guided) 8-position filter wheel for Aluma Series cameras.  This filter wheel does not have a built-in self-guiding CCD.  It is compatible with Canon EOS and Nikon lens adapters.

fw_detent_close1Features

The carousel holds eight 36mm filters and inserts are available for 1.25″ filters.  The 36 mm filters provide unvignetted imaging for the largest Aluma sensors.

Aluma wheels include a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat-fielding.

The left-hand image below shows a dust spot on the filters.  A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, at right.  No evidence of the dust spot is visible.  This high precision results in the highest quality images and excellent photometric accuracy.



flatfield2

Additional Information

Filter Size

36mm / 1.25″

OS Compatibility

Windows 32 and 64 bit, Mac, Linux, iOS, Android

Weight

1.8 lbs

User’s Manual

Installation, and operation instructions for FW8S/FW8G-STT Filter Wheels.

Download



Backfocus Table

Backfocus configuration table

Download
