SBIG Aluma CCD694
Our new high performance Aluma® CCD Series cameras offer capabilities and features not available in any other scientific-grade imaging camera. This lightweight (2.2 lbs) and compact (4.5″ x 4.5″ x 4″ with handles) camera includes two-stage cooling, USB 2.0 interface, ultra-reliable even-illumination shutter, and fast low-noise readout.
The Aluma CCD series supports a wide range of accessories, including the 8-position FW8S-Aluma filter wheel with micron-level filter positioning, StarChaser SC-2 off-axis guide camera, and AO-8A Adaptive Optics accessory.
The Aluma CCD694 has a high-sensitivity, low-noise 6 megapixel CCD sensor with 4.54 micron pixels. It is ideal for taking high spatial resolution, long duration exposures with minimal amp glow, dark current, and noise. It also includes the ability to perform high ratio analog binning, which is important for applications such as spectroscopy.
Aluma CCD is a new generation of research cameras tuned for even better performance. Over two years of collaboration with university researchers helped us bring you an enhanced new Aluma CCD series that represent the best value in a high-performance mid-sized 16-bit CCD detector. We have carefully refined the camera electronics for improved performance, minimum amp glow, and low noise. Using SONY’s best-in-class CCDs, you’ll get the precision and ultra-clean images of a CCD with the sensitivity of CMOS technology.

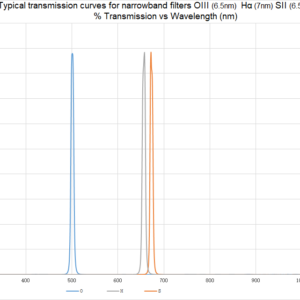

Check out our package deals below for extra savings!
A Crescent and a Bubble by Tony Hallas – Aluma CCD694 image.
Aluma CCD694 – Incredible Sensitivity
The ICX-694 CCD is one of the best optical sensors ever produced, with peak quantum efficiency over 75%, very broad spectral sensitivity, and extraordinary blue sensitivity. It also has very low read noise, large dynamic range, and extremely low dark current. This combination of high sensitivity and very low noise means you get cleaner, deeper images – faster.
“This camera is crazy…
in 60 seconds it can show the blue jet in IC 1182…
now that is blue sensitive…!!!”
Thanks to our supply agreement in place with the manufacturer, we can continue to purchase new sensors through 2025.
Aluma CCD Features include:
- High-performance CCD imaging sensors currently manufactured by SONY and Teledyne E2V
- Light weight, compact design
- Centered optical axis for optimum instrument balance
- Ultra reliable even-illumination (photometric) mechanical shutter
- USB 2.0 interface
- Full frame image buffering eliminates readout artifacts
- 2-Stage TE cooling with typical -50C from ambient
- Twin variable speed fans with SmartCoolingTM technology
- High accuracy temperature regulation
- Built-in RBI Pre-flash (full frame front-illuminated sensors only)
- External TTL trigger inputs and output

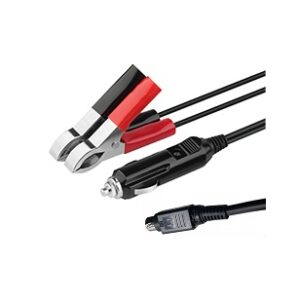

- Included 110V / 220V power supply and optional 12VDC operation
- User-rechargeable desiccant plug
- Built-in 1/4-20 tripod mount
- Support for high precision 8-position filter wheels
- Works with StarChaser SC-2 off-axis guide camera and AO-8A adaptive optics
- Bulletproof firmware update capability – virtually impossible to “brick”
All Aluma CCD models ship with MaxIm LT for Windows – a special version of MaxIm DL specific to our cameras. Aluma CCD also supports third-party applications through ASCOM and native drivers.
Compact and Lightweight Design
Aluma CCD cameras measure just 4.25″ x 4.25″ x 4.0″ with handles (3.5″ without handles) and weigh just 2.2 lbs (1 kg).
The Aluma CCD694 has electronic shuttering, for a minimum exposure of 0.001s. In addition it has a high reliability mechanical shutter, which facilitates accurate dark/bias calibration frames.
High Performance ICX-694 Image Sensor
The Aluma CCD694 uses the popular 6 megapixel SONY ICX-694ALG sensor. This sensor has 2750 x 2200 pixels at 4.54 microns square, for a 14.6 mm x 12.8 mm chip size.
This is a high sensitivity interline CCD sensor with extremely low dark current and very low read noise. Combining this high-performance sensor with Aluma CCD’s high cooling performance and low readout noise results in exceptionally clean images.
This sensor includes microlens technology that concentrates light on the sensitive area of each pixel. The CCD’s sensitivity peaks in the center of the visible spectrum at 550 nm, and maintains high sensitivity throughout the visible spectrum. The ICX-694 is particularly good in the blue compared to other sensors on the market.
All Aluma CCD cameras include our powerful new SmartCooling technology. The two-stage cooler, powerful fans, and advanced heat sink designed using thermal flow simulation combine to produce typical cooling delta from ambient of -50C. This is quite a feat considering the Aluma CCD’s very compact and lightweight package.
SmartCooling automatically adjusts the fan speed to optimize cooler performance and power consumption. The camera’s firmware is constantly monitoring the sensor and heat sink temperatures, as well as controlling the cooler power. When full cooling power is needed – when ramping down or running near full power – the fans ramp up to their maximum speed, resulting in the strongest possible cooling. When less cooling power is needed the fans automatically slow to reduce noise levels and power consumption. SmartCooling also prevents any possibility of overheating by backing off power if the heat sink gets too hot – so you don’t need to worry if your camera is baking in a hot observatory during the day.
Advanced Software Included
All Aluma CCD cameras come with our MaxIm LT software – a $200 value! MaxIm LT is a special version of our venerable MaxIm DL software that provides complete control of your camera, filter wheel, and autoguider, plus advanced image processing capabilities. If you wish you can upgrade to MaxIm DL Pro to get complete observatory integration and even more processing and analysis capabilities.
Each Aluma CCD camera package includes:
- MaxIm LT software – please use this form to request your license
- Deluxe carrying case
- Universal power supply (110V / 220V, 50-60 Hz)
- 2″ Nosepiece adapter
- USB flash drive containing software, drivers, and documentation
- 15 foot (4.5 m) USB cable
Optional Micron-Precision Filter Wheel

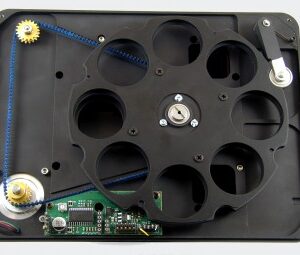

The optional FW8S-Aluma 8-position filter wheel includes a positive centering mechanism that precisely centers each filter in the exact same position every time. This single-pixel accuracy completely eliminates ghost images of dust spots and other artifacts after flat-fielding.
Positive detent mechanism provides single-pixel filter position accuracy
Precision flat-fielding with utlra-accurate indexing
The left-hand image shows a dust spot on the filters. A flat-field calibration frame was taken, then the filter wheel was rotated several times before taking a second picture, which was flat-field calibrated, at right. No evidence of the dust spot is visible. This high precision results in the highest quality images and excellent photometric accuracy.
The Aluma wheel holds standard 36 mm filters, and inserts are available for 1-1/4″ filters, which are suitable for smaller format CCD sensors.
The Aluma filter wheel replaces the camera’s front plate, resulting in the minimum possible back-focus, ensuring that the camera / filter wheel combination will reach focus on the widest possible variety of optical systems.
Optional 16 Position Filter Wheel

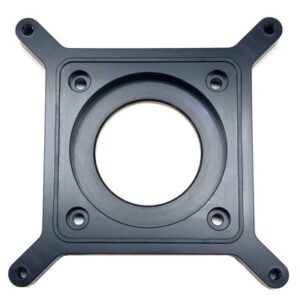

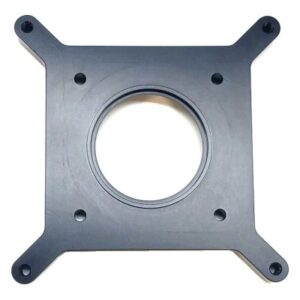

The optional AFW-16-36R filter wheel, attached via AFW to Small Format Camera Adapter, provides for a full sixteen 36 mm filters. Please note that the AFW wheels work with large format accessories, and do not accommodate screw-in 1-1/4″ filters due to their height.

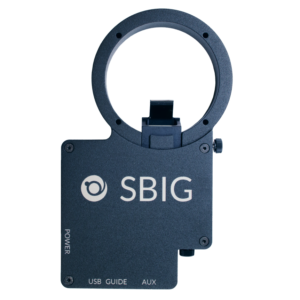

Optional StarChaser SC-2 Off-Axis Guide Camera
For astronomical imaging the Aluma CCD series works the the StarChaser SC-2 Off-Axis Guide Camera. This provides reliable guiding with no impact from optical train flexure. It also supports operation of the optional AO-8A Adaptive Optics accessory.

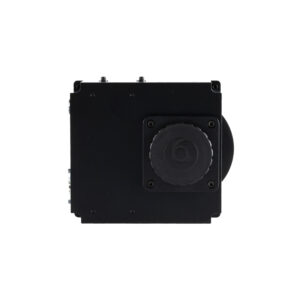

Optional AO-8A Adaptive Optics
All Aluma CCD models can operate with the AO-8A Adaptive Optics accessory. The AO-8A uses a tip-tilt window to quickly and precisely adjust the image position in response to autoguider feedback. With Adaptive Optics there is no backlash, stiction, or lag, and the movements are extremely precise and accurate. This allows the AO-8A to not only remove the effects of periodic error, drift, and wind gusts, but also reduce the effects of atmospheric seeing.
For more information please see AO-8A.
12.48 mm x 9.98 mm
6 million pixels
|Self-Guiding In Front of Filters||
|Imaging / Pixel Array||
2750 x 2200
|Full Well Capacity||
|Dark Current e-/p/s||
0.025 e-/p/s typical
|Filter Wheel Option||
12 VDC, 5A max
|Remote Guide Head||
|Adaptive Optics Option||
|Pixel Digitization Rate||
0.001 sec minimum
~ 50 °C
|Read Noise (typ)||
4.5 e- typical
36mm / 1.25"
|Full Frame Download||
~1 sec via USB, ~6 sec via WiFi
Horizontal 1, 2, 3, 4; Vertical 1-255
Product overview of Aluma CCD series cameras.Download
Aluma CCD Series user’s manual.Download
Backfocus Calculator Spreadsheet
This Excel spreadsheet helps you calculate backfocus distance for your system. If you do not have Excel it can be uploaded into Google Sheets.
Drivers and Camera Configuration Utility
Aluma uses the DL Imaging driver package. Download the latest drivers and camera configuration utility.Download
Provides compatibility with many third party control applications. Please install the main driver package (above) first.Download
MaxIm LT Software
Camera owners can request a MaxIm LT license here (camera serial number required):Link
To get started immediately, request the full MaxIm DL Pro demo version here (click Demo tab):Link
Once you receive your MaxIm LT license, simply replace your demo license using Help menu Enter License.
MacOS and Linux Drivers
Available by request. Please post in our support forum, Aluma section:Link
Software Development Kit
Available by request. Please post in our support forum, Aluma section:Link
Visit our Firmware Archive here:Link
